Handling Equipments

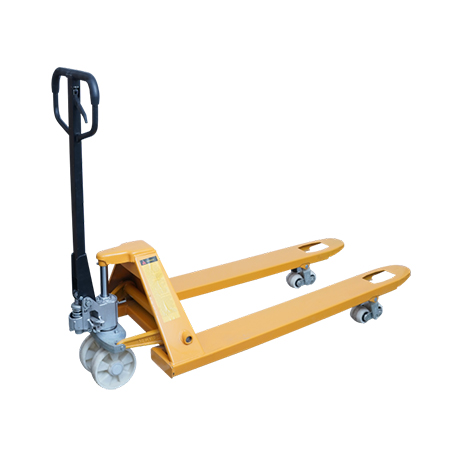

Hydraulic Hand Pallet Truck-Nylon Tyre-301
| Model | 301-2000 | 301-3000 | 301-5000 |
| Capacity (Kg) | 2000 | 3000 | 5000 |
| Min. Fork Height (mm) | 85 | 85 | 85 |
| Max. Fork Height (mm) | 195 | 195 | 195 |
| Lifting Height (mm) | 110 | 110 | 110 |
| Fork Length (mm) | 1150 | 1220 | 1220 |
| Single Fork Width (mm) | 160 | 200 | 160 |
| Fork Overall Width (mm) | 550 | 685 | 685 |
| Fork Wheel Single (mm) | 80x93 | 80x93 | 80x93 |
| Fork Wheel Tandem (mm) | 180x50 | 180x50 | 180x50 |
| Steering Wheel (mm) | 180 | 180 | 180 |
| Weight (Kg) | 65 | 72 | 145 |

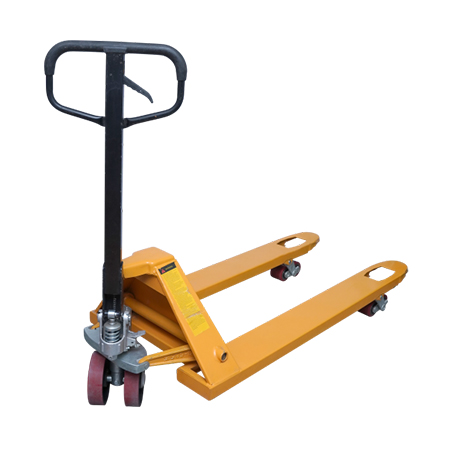

Hydraulic Hand Pallet Truck-Pu Tyre-302
| Model | 302-2500 | 302-3000 |
| Capacity (Kg) | 2000 | 3000 |
| Min. Fork Height (mm) | 85 | 85 |
| Max. Fork Height (mm) | 195 | 195 |
| Lifting Height (mm) | 110 | 110 |
| Fork Length (mm) | 1150 | 1220 |
| Single Fork Width (mm) | 160 | 200 |
| Fork Overall Width (mm) | 550 | 685 |
| Fork Wheel Single (mm) | 80x93 | 80x93 |
| Fork Wheel Tandem (mm) | 180x50 | 180x50 |
| Steering Wheel (mm) | 180 | 180 |
| Weight (Kg) | 70 | 78 |

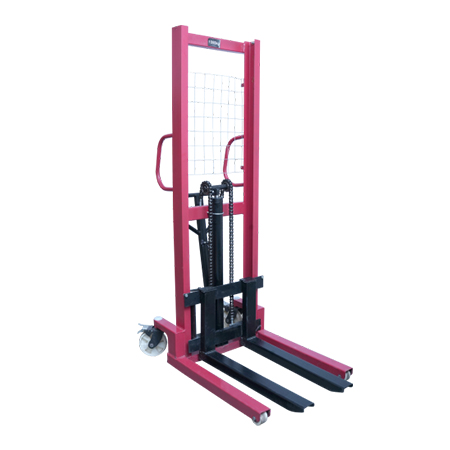

Hydraulic Hand Stacker-307
| Model | 307-2000 | 307-2000 |
| Capacity (Kg) | 1000 | 2000 |
| Max. Lifting Height (mm) | 1600 | 1600 |
| Lowered Height Of Forks (mm) | 85 | 85 |
| Fork Length (mm) | 900/1150 | 900/1150 |
| Adjustable Width Of Fork (mm) | 270-680 | 270-680 |
| Lifting Speed (mm) | 14 | 14 |
| Lowering Speed (mm) | Controllable | Controllable |
| Outer Width Of Front Legs (mm) | 750 | 750 |
| Weight (Kg) | 130 | 160 |

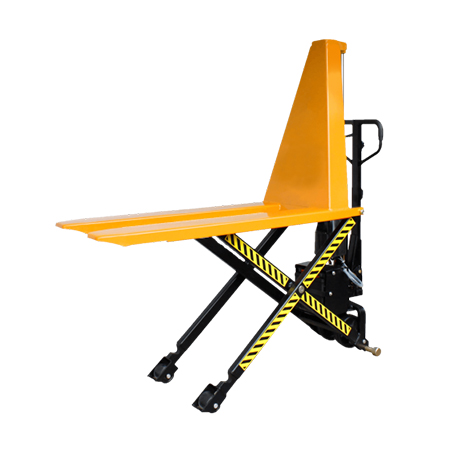

Hydraulic High Lift Pallet Truck-312
| Capacity | 1500 |
| Min. Fork Height (mm) | 85 |
| Max. Fork Height (mm) | 800 |
| Fork Length (mm) | 1150 |
| Fork Overall Width (mm) | 685 |
| Weight (Kg) | 85 |

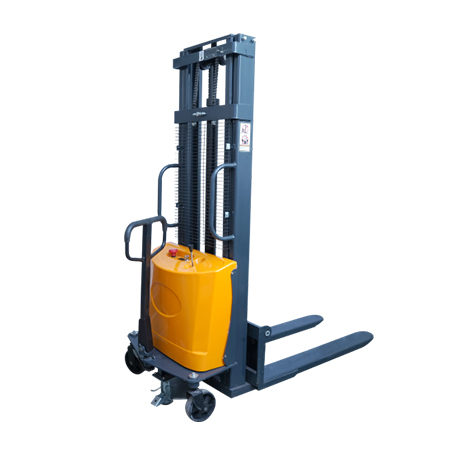

Electric Stacker-308
| Capacity (Kg) | 1500 |
| Min. Fork Height (mm) | 90 |
| Max. Fork Height (mm) | 300 |
| Fork Width (mm) | 320-695 |
| Fork Length (mm) | 1000 |
| Battery (V/AH) | 12/120 |
| Lifting Motor Power (KW) | 1.5-1.6 |
| Type Of Moving | Manual |
| Weight (Kg) | 520 |

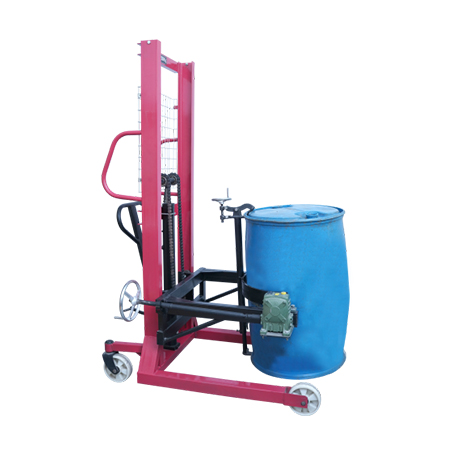

Drum Stacker & Tilter-305
| Capacity (Kg) | 350 |
| Max. Lifting Height (mm) | 1600 |
| Lifting Speed (mm/Stroke) | 20 |
| Lowering Speed (mm/Stroke) | Controllable |
| Front Wheel Size (mm) | $85X50 |
| Rear Wheel Size (mm) | $180X50 |
| Overall Size (mm) | 1190X890X2000mm |
| Weight (Kg) | 160 |

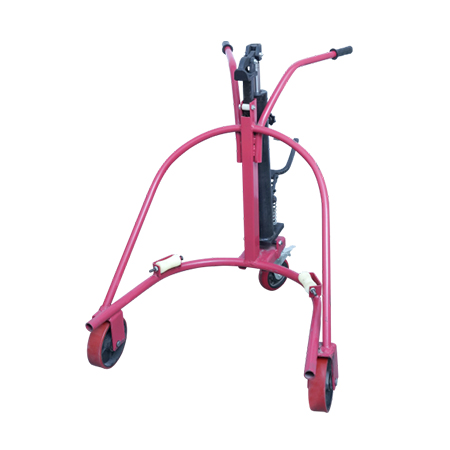

Drum Truck-306
| Capacity (Kg) | 300 |
| Max. Lifting Height (mm) | 400 |
| Lifting Speed (mm/Stroke) | 20 |
| Lowering Speed (mm/Stroke) | Controllable |
| Front Wheel Size (mm) | 485x50 |
| Rear Wheel Size (mm) | $180X50 |
| Overall Size (mm) | 1025x915x1180 |
| Weight (Kg) | 60 |
