Conveyors
Flexible Conveyor-199
| Total Length (mm) | 4300 (After Expansion) |
| Width (mm) | 600 |
| Mim. Hight (mm) | 730 |
| Max. Hight (mm) | 1100-1200 |
| Roller Dia (mm) | 50 |
| No. Of Roller | 42 |
| Gap Between Each Roller (mm) | 70 |
| Mim. Length (mm) | 2100 |

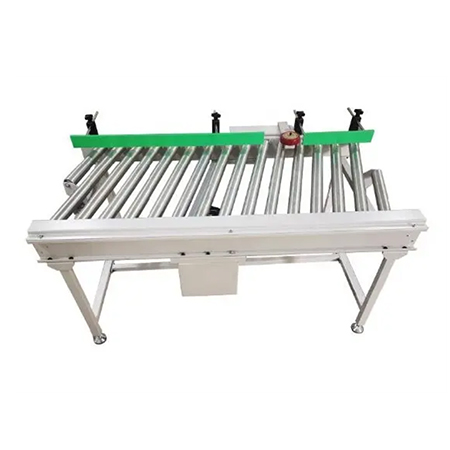

Turnover Conveyor-200
| Length (mm) | 1550mm |
| Width (mm) | 1080mm |
| Hight (mm) | 750mm |
| Speed (Meter/Min.) | 16-18 |
| Maxi. Loading (Kg) | <60 |
| Suitable Carton | Diagonal Length 900mm |

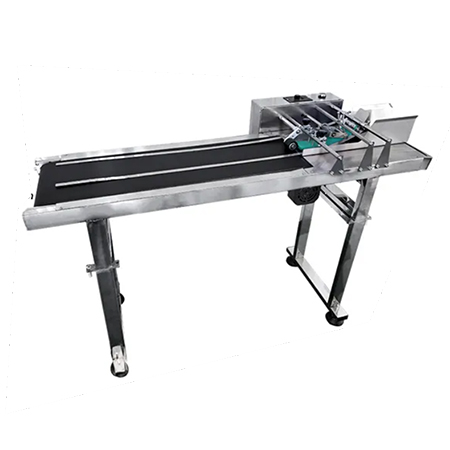

Feeding & Stacking Ink Jet Conveyor-503
| Belt Length (mm) | 1500 |
| Belt Width (mm) | 300 |
| Height Of Conveyor (mm) | 750 |
| Structure Type | Belt Conveyor |
| Speed (R/Min) | 1350 |
| Voltage (V/Hz) | 220/50 |
| Power (W) | 90 |
| Dimension (L*W*H) | 1500*320*750 |
| Loading Capacity (Kg) | 15 |
